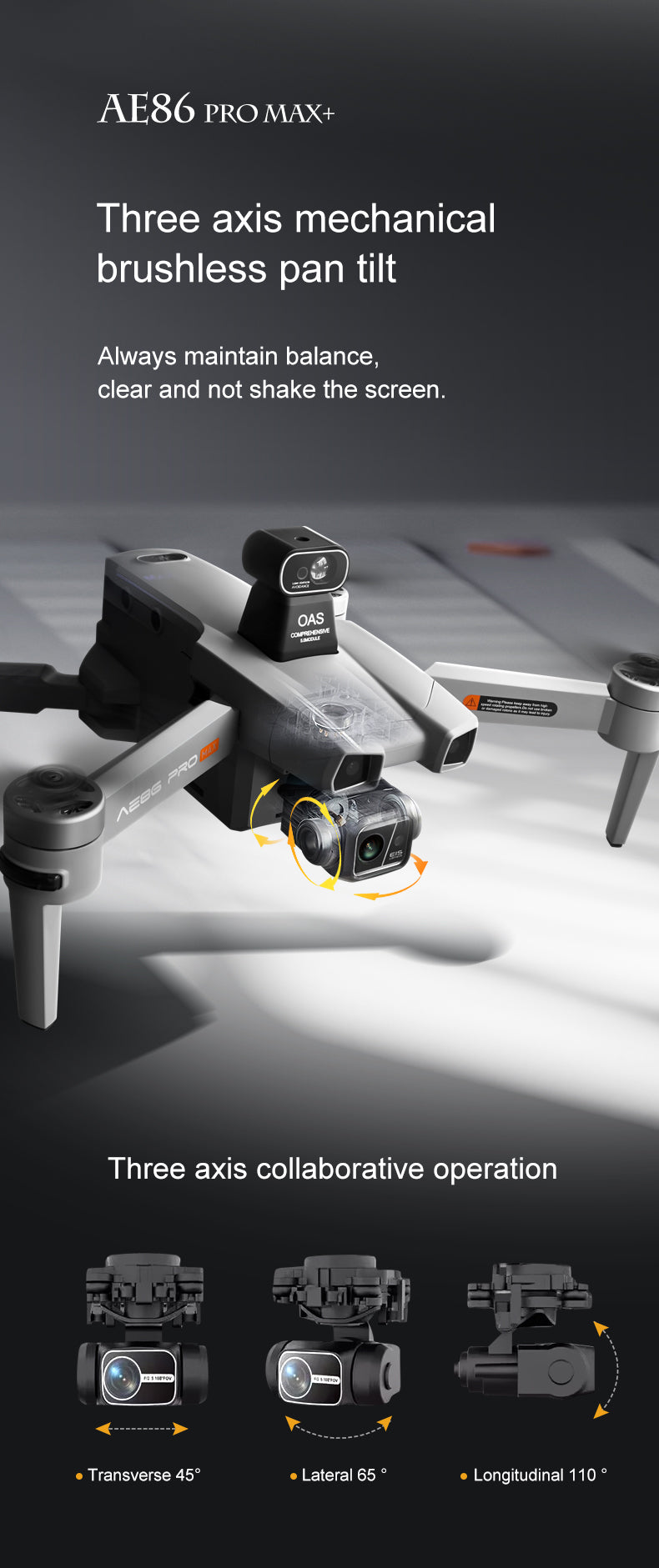

Front camera and gimbal.
The grey model's front camera sits beneath the nose inside the gimbal assembly. This close-up shows how those parts fit together.
Open the full gimbal illustration in a new tabFind the frame.
Change the feeling.
Explore a different point of view with the gimbal-mounted camera. Adjust the camera angle from the controller to compose the scene ahead.
3-axisGimbal mounting
Your angleRemote camera adjustment
AE86, in detail.
Explore the grey camera assembly, then compare the two body finishes.

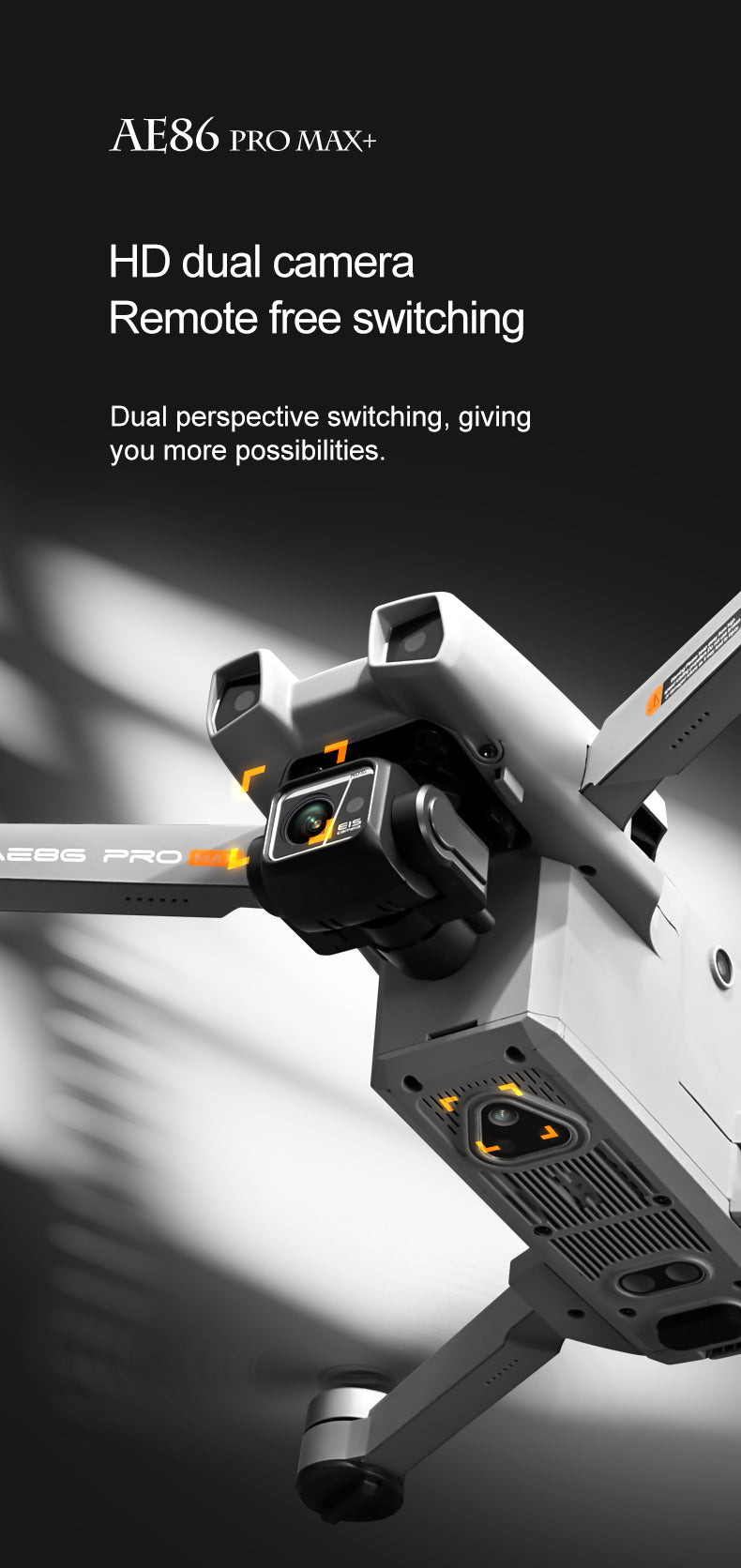

Front and lower cameras.
The underside view shows the front camera and the camera beneath the grey aircraft, with each position highlighted in the supplied illustration.

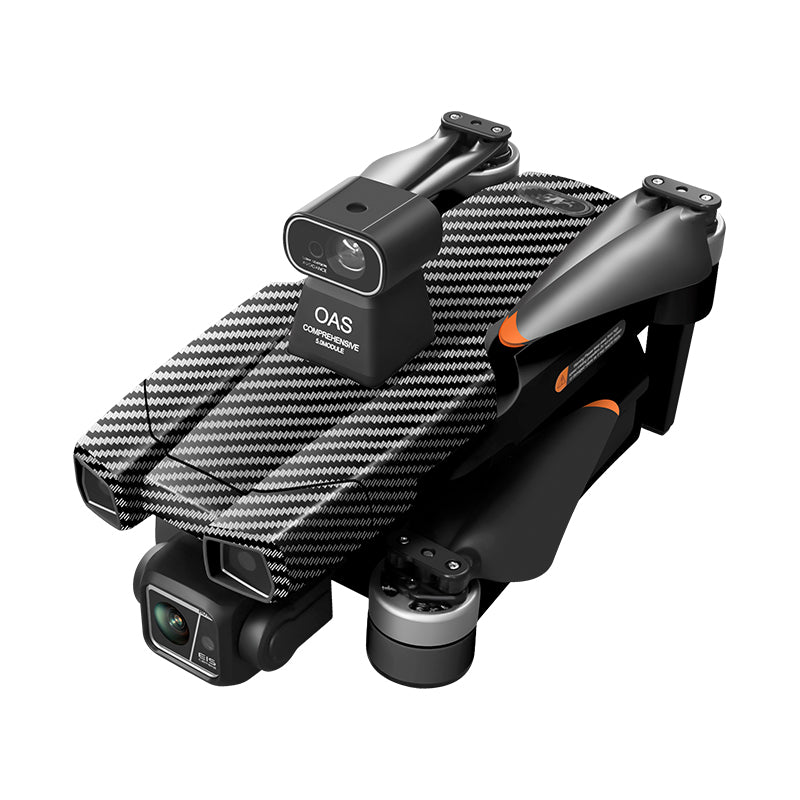

Open the full camera illustration in a new tabCompare carbon-pattern and grey finishes

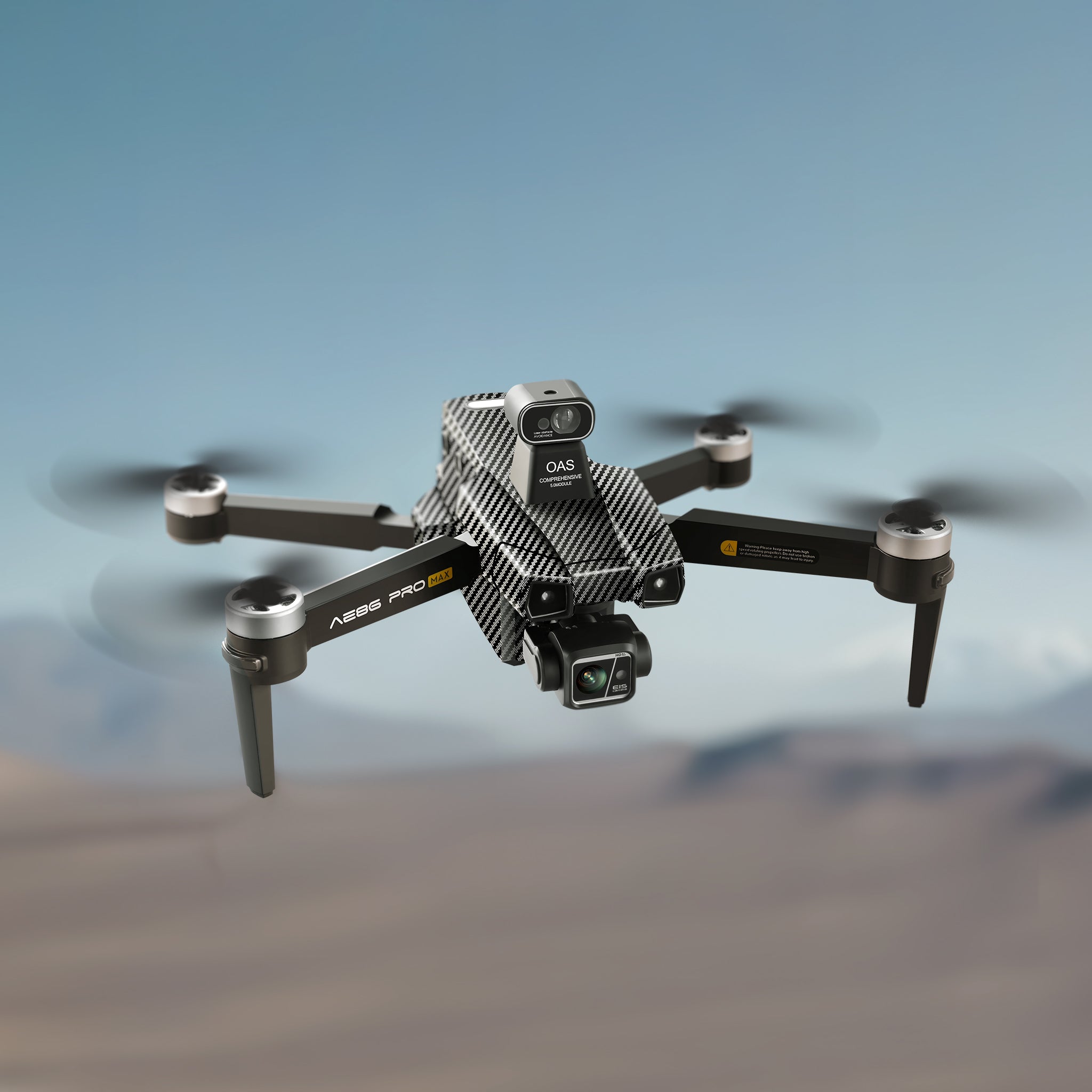

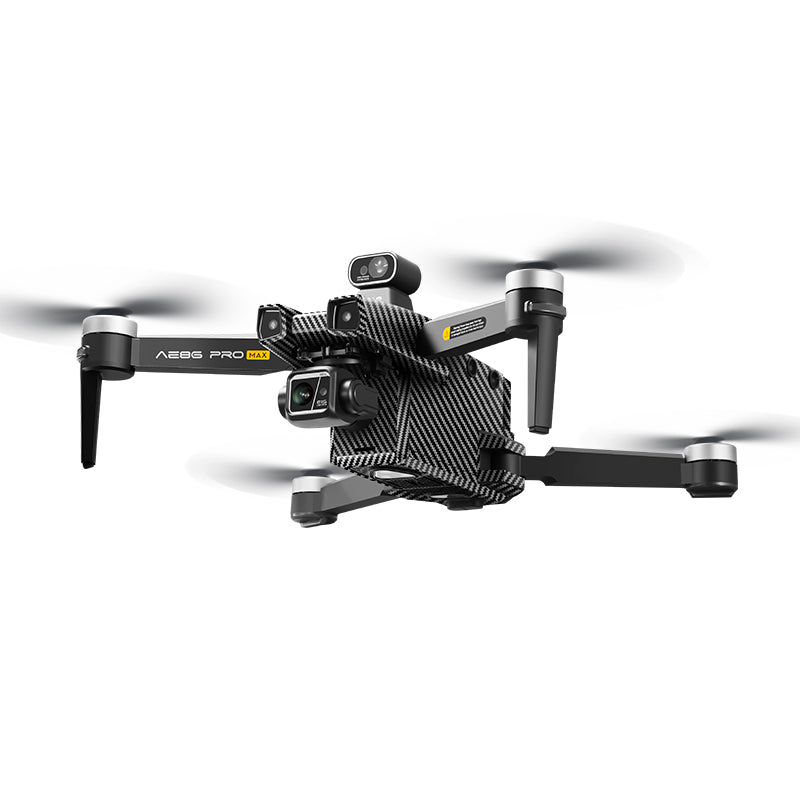

Two body finishes, shown folded. The camera illustrations above show the grey body.
AE86. See it in motion.
A closer look at the aircraft, controller and folding design. Grey finish shown.
Big on perspective.
Smaller in your bag.

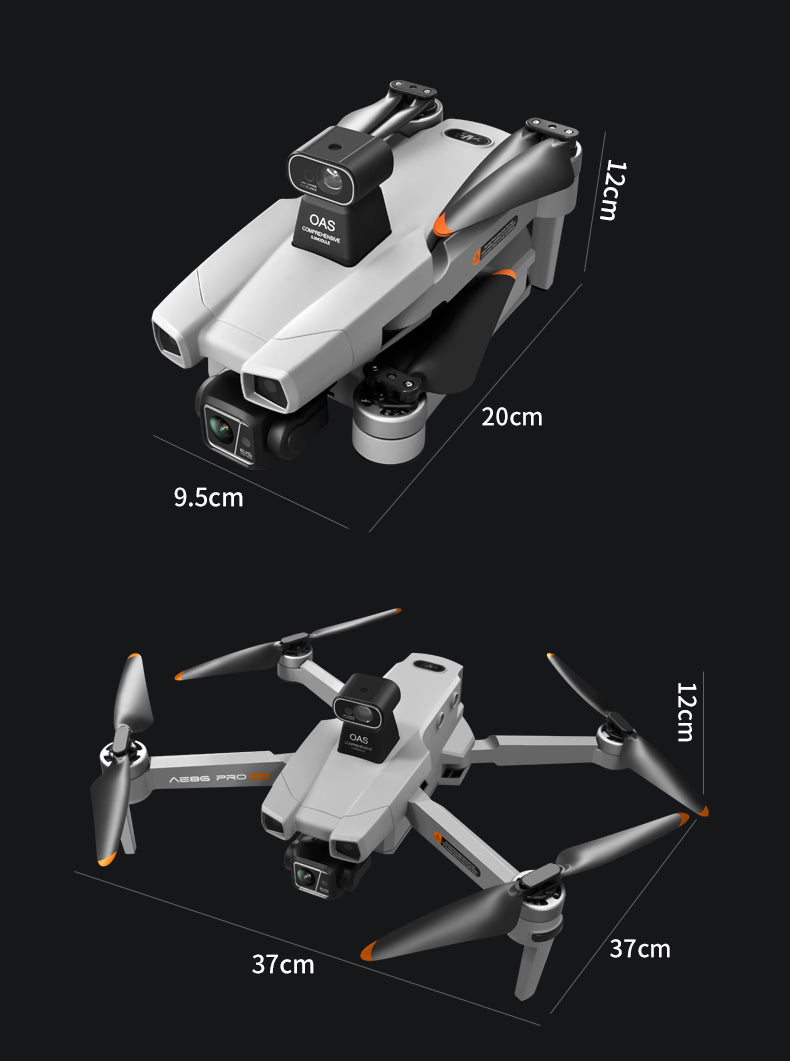

Compare the full grey airframe with its folded form. Both views and their dimensions are shown together.
See the complete design.
Follow the original drawing from the folded body to the full flight configuration, with the arms, propellers and front camera visible.
- Unfolded
- 37 × 37 × 12 cm
- Folded
- 20 × 9.5 × 12 cm
- Finish shown
- Grey
Dimensions from the supplied grey-airframe drawing.
See specificationsView more product details Hide detailed images
Explore the manufacturer's diagrams.

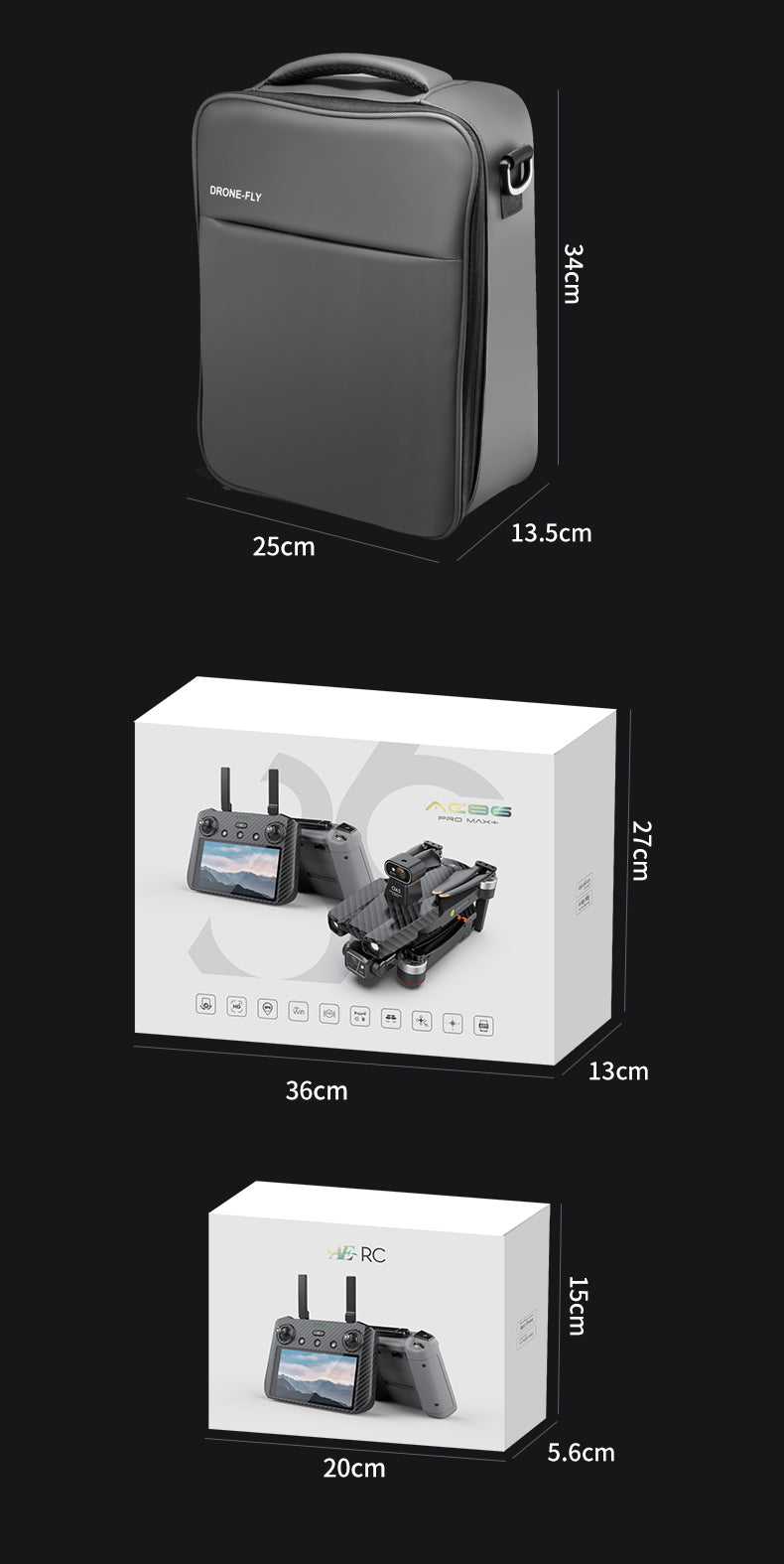

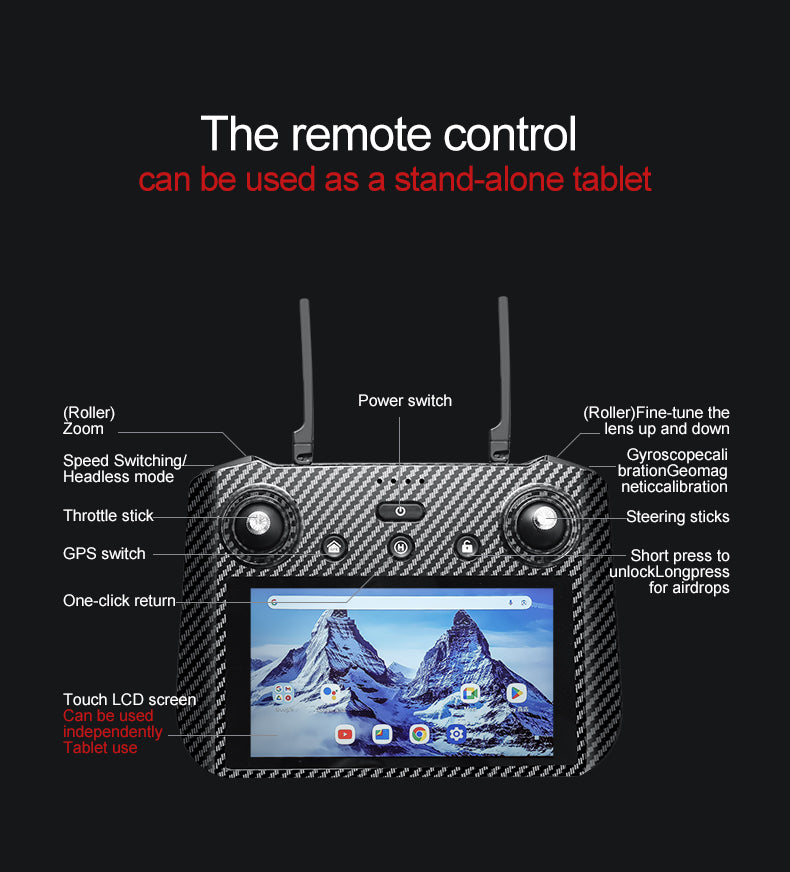

Grey-airframe details are shown first. Packaging and controller references are labelled separately so you can compare the pictured versions.
Manufacturer illustrations describe the components pictured. Controller and packaging appearances can vary with the selected version.
The details
behind the flight.
01
Brushless motors.
Brushless drive units at each arm provide the power for flight.
02

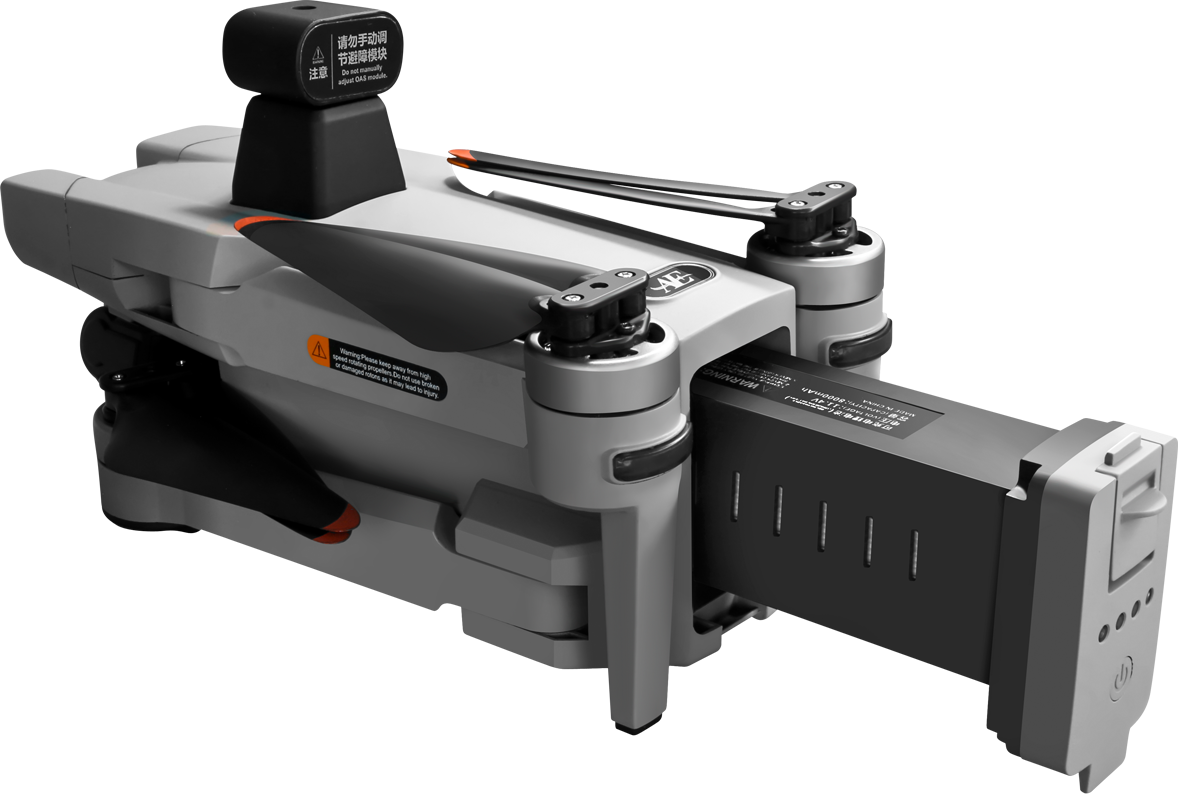

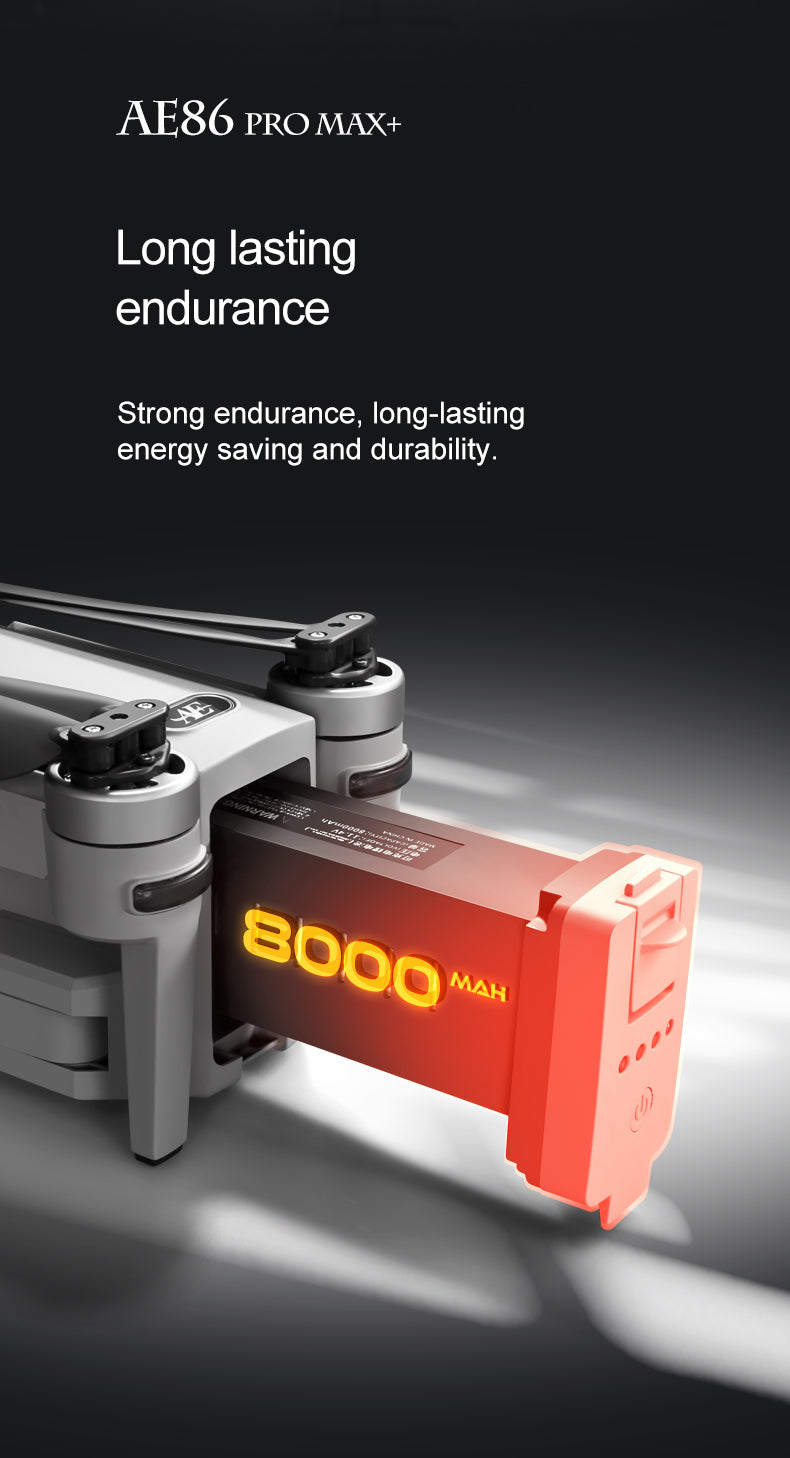

Removable battery.
A removable rechargeable module keeps charging and battery changes straightforward between flights.
Get to know
your drone.
A closer look at the
AE86 configuration illustrated here.
AE86 / FOLDED
Airframe
- Design
- Folding quadcopter
- Unfolded dimensions
- 37 × 37 × 12 cm
- Folded dimensions
- 20 × 9.5 × 12 cm
- Finish illustrated
- Grey finish
Camera & controller
- Camera mounting
- Three-axis gimbal
- Camera angle
- Remote adjustment
- Controller illustrated
- Integrated display, dual control sticks
Flight & power
- Positioning
- GPS and optical flow
- Return function
- GPS return to recorded home point
- Motor type
- Brushless
- Power
- Removable rechargeable battery
More manufacturer specifications
The dimensions and gimbal diagrams below refer to the grey aircraft pictured in the supplied guide.
- Unfolded dimensions
- 37 × 37 × 12 cm
- Folded dimensions
- 20 × 9.5 × 12 cm
- Gimbal diagram: transverse
- 45°
- Gimbal diagram: lateral
- 65°
- Gimbal diagram: longitudinal
- 110°
- Camera positions
- Front and underside
- Battery construction
- Removable modular pack
Gimbal figures describe the manufacturer's movement diagrams. Match components to the selected version.
Open the original gimbal diagram in a new tabDimensions refer to the illustrated configuration. Package contents and features can vary by version.
Share your experience.
Already flown this aircraft? Tell us about your experience. Your message goes to the AeroVibe team and is not published automatically.
Choose your AE86.
Review the finish, quantity and price before adding AE86 to your cart.
